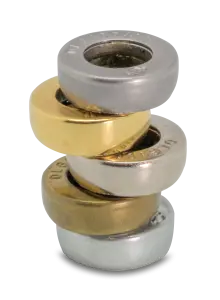

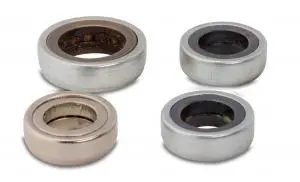

Axial ball bearings

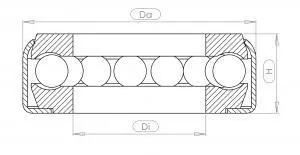

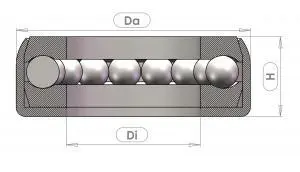

Designation Diameter Height Bullet Diameter pcs. Bullets Load bearing capacity Packaging unit Weight
Di (mm) Da (mm) H (mm) (mm) (pcs.) (daN) (pcs.) kg / 100 pcs.
Tolerances +/- 0,2 +/- 0,2 +/- 0,2
DLG 100/7 7,30 15,10 7,20 (-0,20) 2,500 13 200 2.500 0,56
DLG 100/7h 7,30 15,00 6,00 2,500 13 200 2.500 0,44
DLG 100/7s 7,30 13,50 7,00 2,000 14 200 4.000 0,34
DLG 100/7b 7,00 13,50 7,00 2,000 14 200 4.000 0,40
DLG 100/8 8,30 15,00 7,00 2,500 13 200 2.500 0,50
DLG 100/9 9,30 17,50 6,00 2,000 20 200 2.500 0,56
DLG 100/10 10,30 17,50 6,00 2,000 20 220 2.500 0,50
DLG 100/10s 10,30 17,10 6,00 2,000 20 220 2.500 0,46
DLG 100/11 11,30 20,00 7,00 2,500 18 220 1.500 0,86
DLG 100/12 12,30 22,00 8,00 3,175 16 220 1.000 1,20
DLG 100/12s 12,30 20,00 8,00 2,500 19 220 1.000 0,80
DLG 100/12l 12,10 18,00 8,00 2,000 21 220 1.000 0,66
DLG 100/13 13,30 22,00 8,00 3,175 16 220 1.000 1,08
DLG 100/14 14,30 25,00 8,50 3,175 18 220 800 1,60
DLG 100/14d 14,30 22,00 7,70 2,500 21 220 800 1,60
DLG 100/16 16,30 27,00 9,00 3,175 20 240 600 1,80
DLG 100/18 18,30 33,00 10,00 4,762 16 240 300 3,26
DLG 100/19h 19,30 28,50 9,10 3,175 22 240 500 1,54
DLG 100/19 19,30 28,50 10,00 3,175 22 240 500 1,76
DLG 100/20 20,40 33,00 10,00 4,762 16 240 400 2,96
DLG 100/20s 20,40 30,10 9,00 3,175 24 240 400 1,88
DLG 100/22 22,40 43,50 12,00 5,000 21 260 50 7,22
DLG 100/23 23,40 43,50 12,00 5,000 21 260 50 7,08
DLG 100/23s 23,30 35,00 12,00 4,000 21 260 50 3,60
DLG 100/24 24,40 43,50 12,00 5,000 21 260 50 6,76
DLG 100/25 25,40 43,50 12,00 5,000 21 260 50 6,64
DLG 100/26 26,40 43,50 12,00 5,000 21 260 50 6,54

Subject to technical changes and errors excepted!

Designation Diameter Height Diameter Bullet pcs. Bullets Load bearing capacity Packaging Unit Weight
Di (mm) Da (mm) H (mm) (mm) (pcs.) (daN) (pcs.) kg / 100 pcs.
Tolerances +/- 0,2 +/- 0,2 +/- 0,2
DLG 100/12z 12,30 20,00 8,00 2,000 14 200 1.000 1,62
DLG 100/14z 14,30 25,00 9,00 3,175 19 300 800 1,88
DLG 100/16z 16,30 27,00 9,50 3,175 20 400 600 1,94
DLG 100/19z 19,30 31,00 10,00 4,762 16 400 500 2,42

Subject to technical changes and errors excepted!

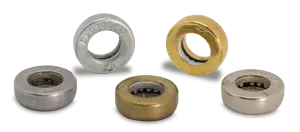

Material

Schulz Stanztechnik manufacturers these axial ball bearings using the materials suited to the specific application.
For the housing, steel, brass or stainless steel are used; for rings, steel or stainless steel which is always hardened. The balls are made of chrome or stainless steel, which is also always hardened. All material combinations – depending on their conditions of use – are possible for the assembly of the individual parts. Various surface coats for the individual parts can be supplied as well as finished bearings: brass which is uncoated or nickel plated; steel and stainless steel which is uncoated, zinc plated or nickel plated. All bearings are available lubricated or unlubricated.

Materials

The following materials are used

Housing: Steel, brass or stainless steel
Rings: Steel or stainless steel, hardened
Bearings Chrome steel or stainless steel, hardened

The following surface coats of the individual parts can be supplied or the finished bearings can be delivered

Steel: uncoated, zinc plated, nickel plated
Brass: uncoated, nickel plated
Stainless steel: uncoated

All material combinations and surface coats are possible for the individual parts. All combinations can also be implemented during assembly.

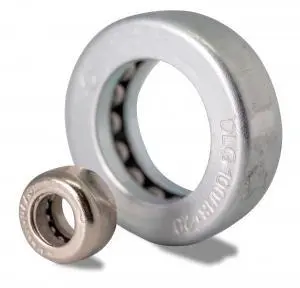

Structure

Schulz Stanztechnik supplies these axial ball bearings for various applications ex works in many different standard dimensions. Bearings with special dimensions or made from other materials – as well as surface coats – are available on request. The different axial ball bearings have been designed for varying loads.

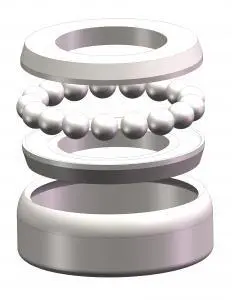

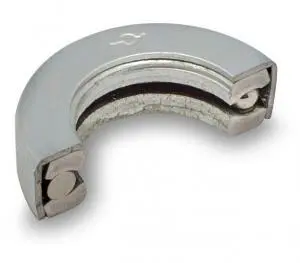

DLG100 axial ball bearings consist of sheet metal housing, two hardened rings as well as hardened precision balls. Due to their structure, we refer to them as an encapsulated, full ball design. In the case of standard bearings, the housing and a ring form the contact surfaces. In the case of special bearings, the contact surfaces are formed by both rings. The bearings are available both lubricated and unlubricated.

Application

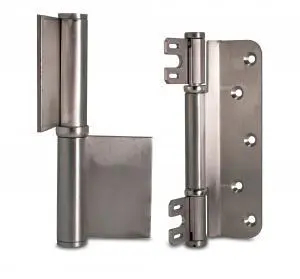

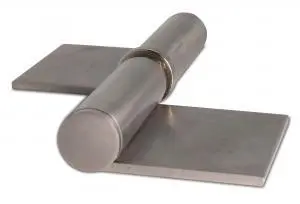

If slow rotational or longitudinal movements should be easy despite high loads, ball bearings – which are generally invisible to the user – are always used. For hinges or drawers, doors and gates, blinds or vehicle seats.

Ball bearings facilitate movement and reduce friction and wear, thus increasing the quality of the product. Ease of movement with ball bearings lend many products a significant competitive advantage.

Schulz Stanztechnik supplies many manufacturers with the exact axial ball bearings they require.

The lock and fittings industry, the furniture industry, blind construction, manufacturers of doors and gates, automobile suppliers and – for the support of drive shafts with low rotational speed – machine construction – they all appreciate the special properties of our ball bearings:

The rolling properties in extreme conditions – such as dirty and wet environments – are particularly good. Due to their tolerances, they can also be used where installation is difficult.

Axial ball bearings can be used in temperatures from -30°C to 140°C.

Übersicht Lieferprogramm DLG100 (737 downloads)

In order to display and read the 3D PDF, you will need Acrobat Reader with an activated 3D function! Subject to technical changes and errors excepted!
